Tessellations 28 V 3.0

Tessellations 28 V 1.0 : 'how to' Video

Tessellations 28 V 2.0 : Create beautiful window mesh / grills/ fences / nets

Would you like to create some amazing and mesmerizing mesh design / pattern-based windows / grills / nets / fences, using tessellations? Or are you a 3D artist and you would love to create and see for yourself 3D printed meshes that are arranged to create tessellations that are interlocking.

 I really was fascinated by amazing ability of ‘Heesch’s 28 tessellations’ (Please search in internet for more details), I was wondering what if same concept can be used in blender to create product to help creator make amazing geometric figures? This will make their windows / fences look even more beautiful, there are many applications apart from just windows, grills and fences…

1. About Tessellations - 28:

‘Tessellation – 28’ is a Blender asset pack that can generated symmetrical mesh patterns, inter-linked mathematical figures made of Bezier segments.

• It can be used to create many things apart from window grills, nets, fences, frames and other mesh patterns.
• It allows you to control its size, shape, patterns, thickness of mesh, trip or clip part of mesh by applying mask
• Apply various materials like steel, aluminum, glass and glossy material.

Tessellations are Mathematical patterns, generated by, arrangement of regular polygon shapes, that are interlocking and closely fit together, without any gap in-between.

2. Asset pack items and description:

Tessellations 28: Initial release will help user create, tessellation based meshes, control its shape, thickness, length, number of meshes (x and y vertices), a mask to control which area is visible, using this user may create practically innumerable shapes of mesh patterns.

Beautiful mesmerizing patterns of meshes can be used to make windows / window grills / fences / frames. In the initial release contains 28 geometry nodes, which can be used separately and controlled by modifying parameters.

Tessellation Switch: It helps user use one of the 28 patterns from a single geometry node

Tessellation materials: set of 70 materials to be used on tessellation meshes, which are steel, aluminum, glossy, glass, rough plastic, scratch metals materials.

3. How to install and use 'Tessellations 28'

Please refer above video for installation and instruction of how to use the product. (Product also comes with a User Manual that describes the same method in detail

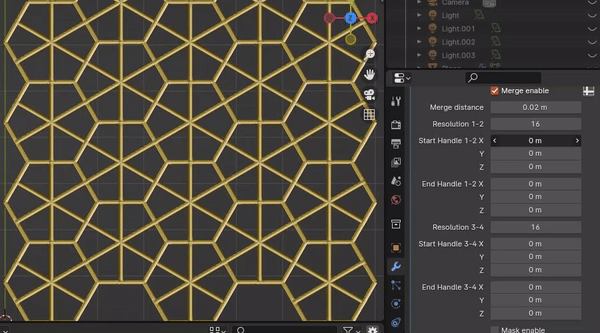

4. Easy to use modifier panel

1.

1. Increase/decrease the size

2. Control tessellation patterns / designs generated horizontally and vertically

3. Control the shape of the tessellation

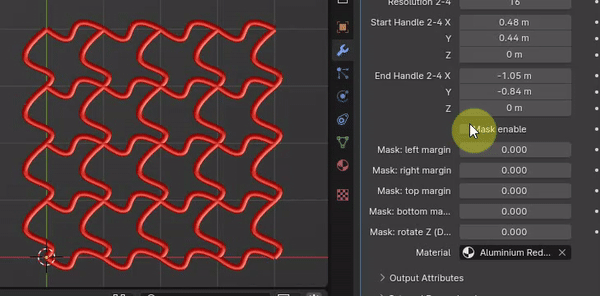

4. Apply mask to trim/clip/trip the part of the mesh you don't want

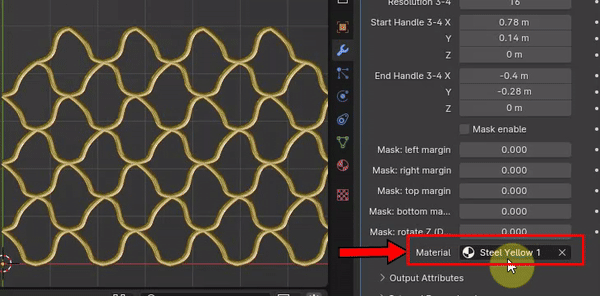

5. Apply Materials lie Steel, Aluminum, Glossy and Glass to Meshes

... and many other control to user.

6. With Tessellations 28 V2.0 it's easy to create majestic windows / grills / nets / fences / meshes

7. Easy to modify window properties like bar length, thickness, bar numbers and the mesh patterns

8. Now meshes can be extruded (scaled in Z direction)

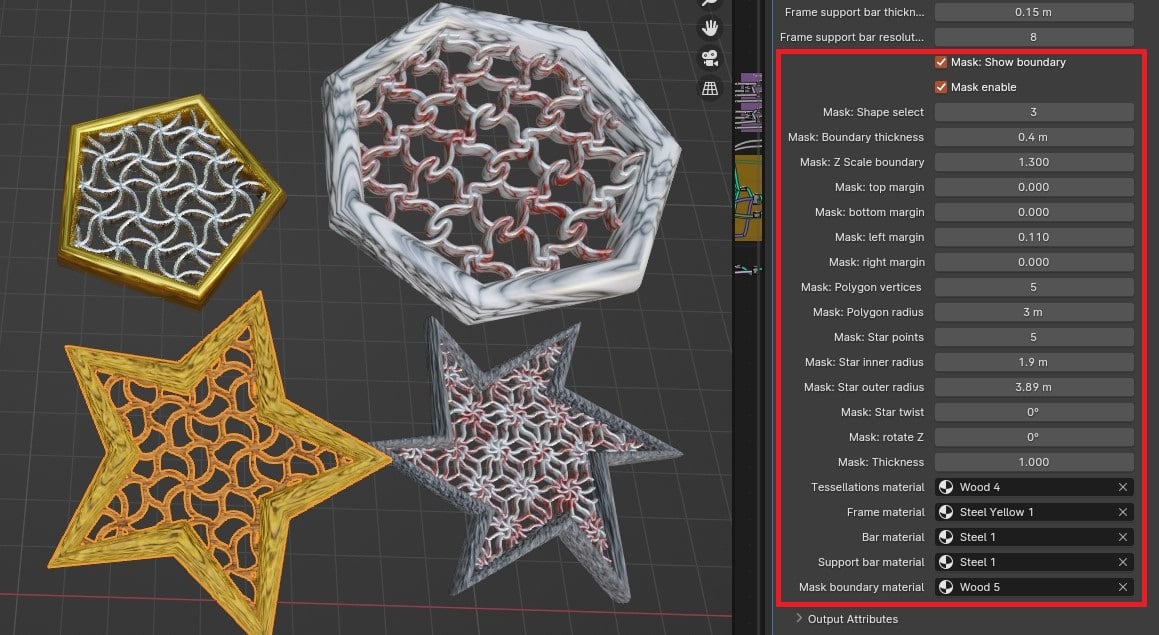

9. Masking is improved to create mask shapes like Polygons (Triangle, Square, Pentagon, Hexagon etc.), Star shapes and Circle (32 Sided) apart from rectangle in pervious version. New martials added now we have: Metals, Scratch Metals, Glass, Woods, Stones, Concrete, Marble = total 50 materials.

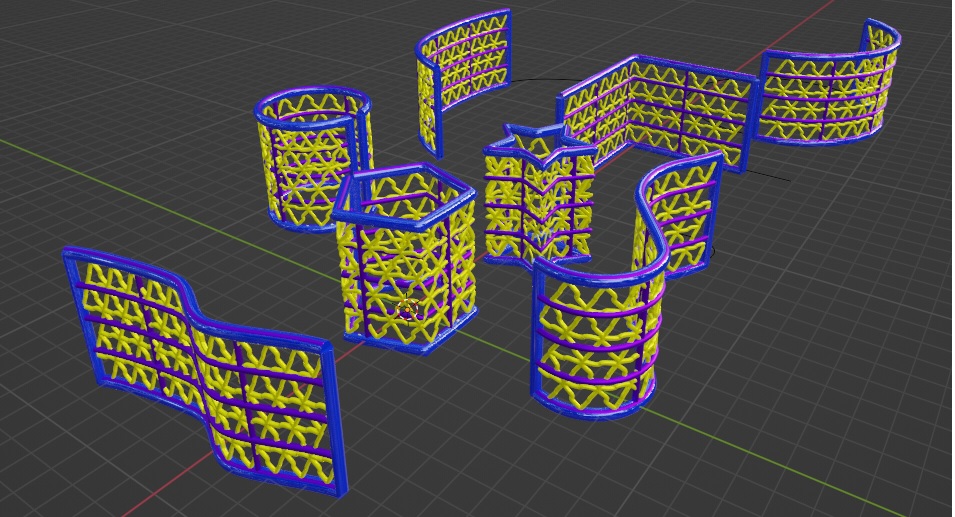

10. Now user can bend / deform the chosen mesh along any curve like Bezier, Nurbs, Polygons, Stars, Circles, Ellipse curve and many more, so go ahead and created curved meshes, fences as you please !
